Single-Channel Superluminescent Diode Light Source (Single-SLED)…

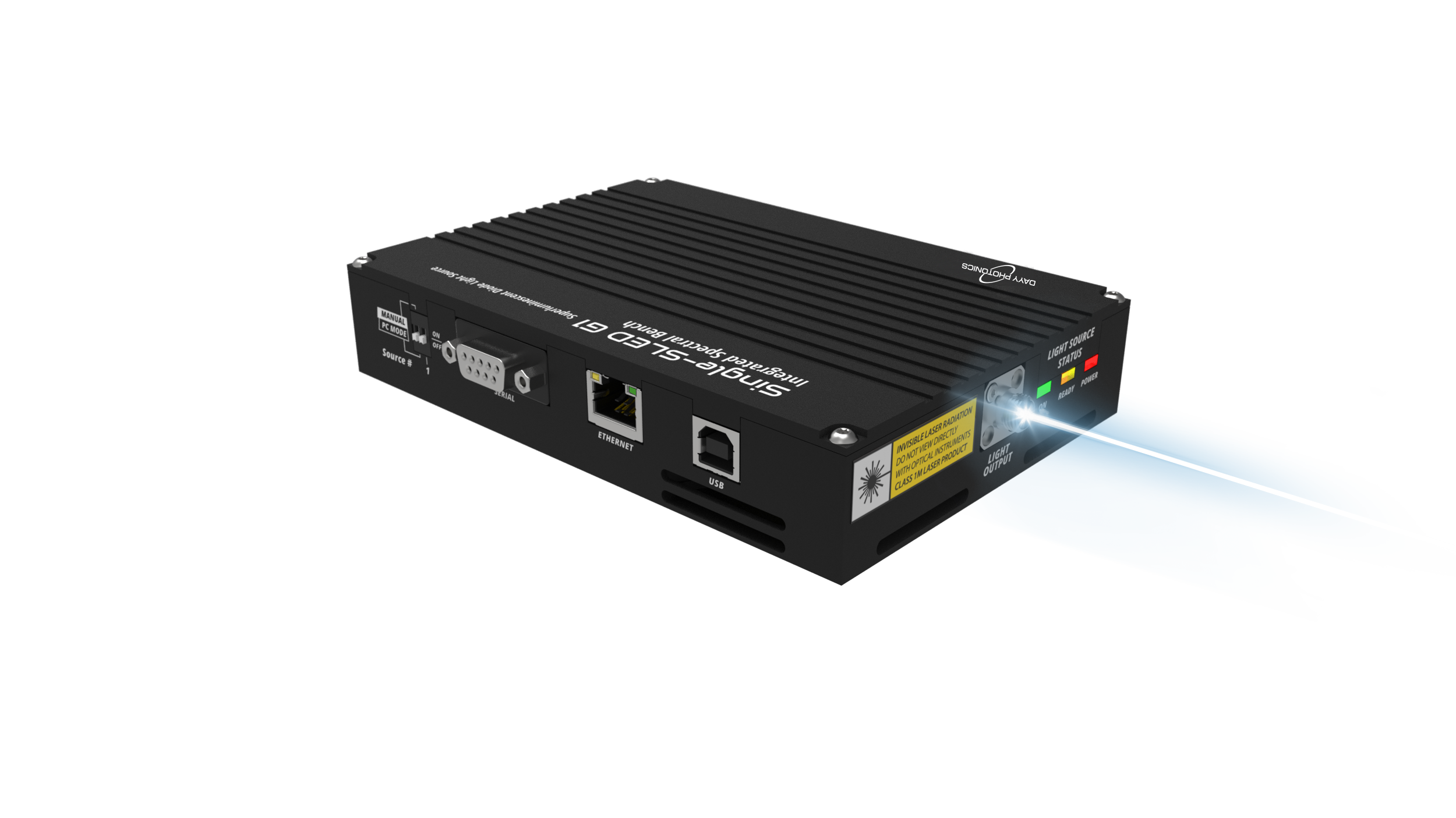

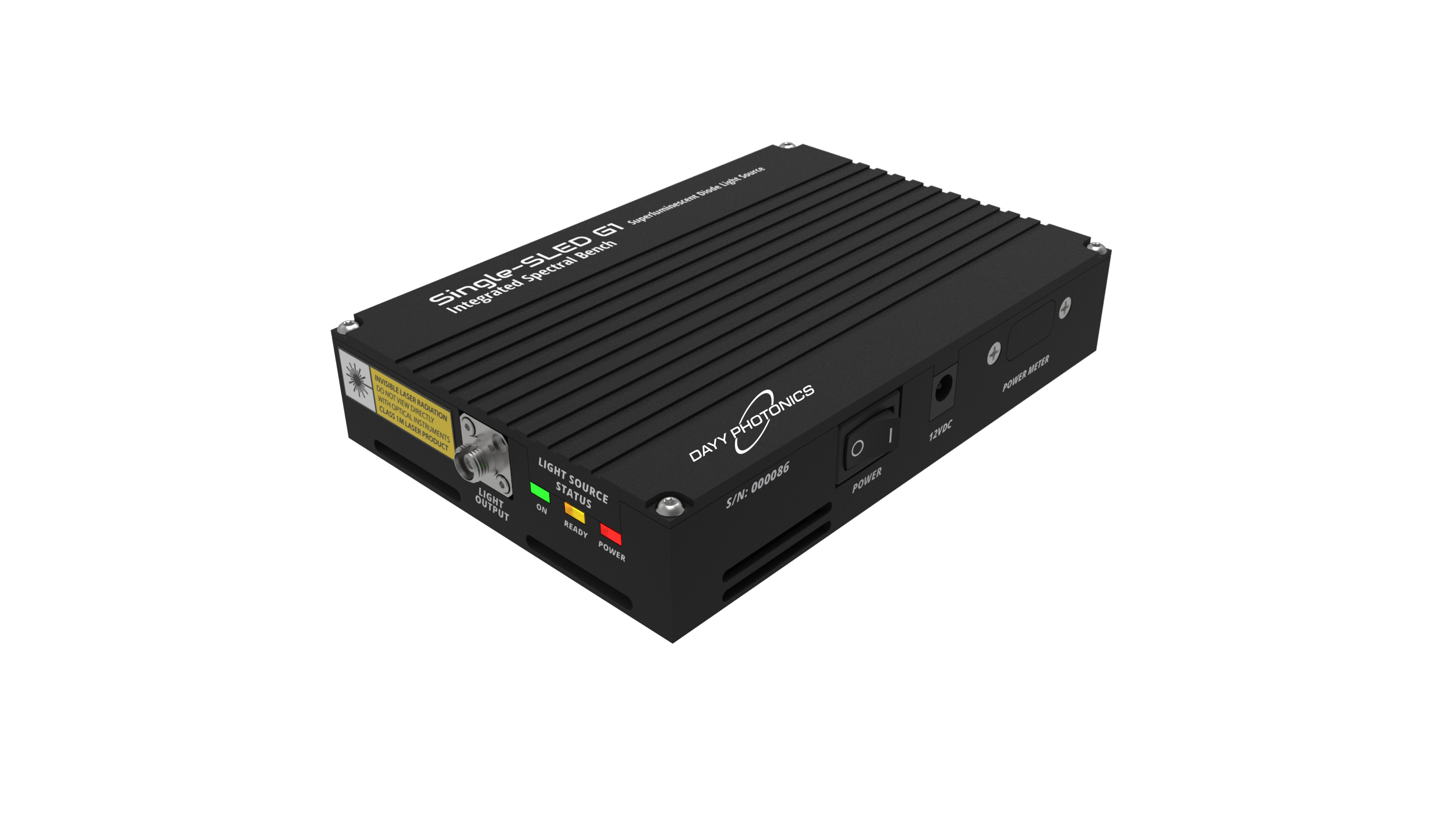

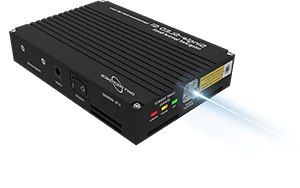

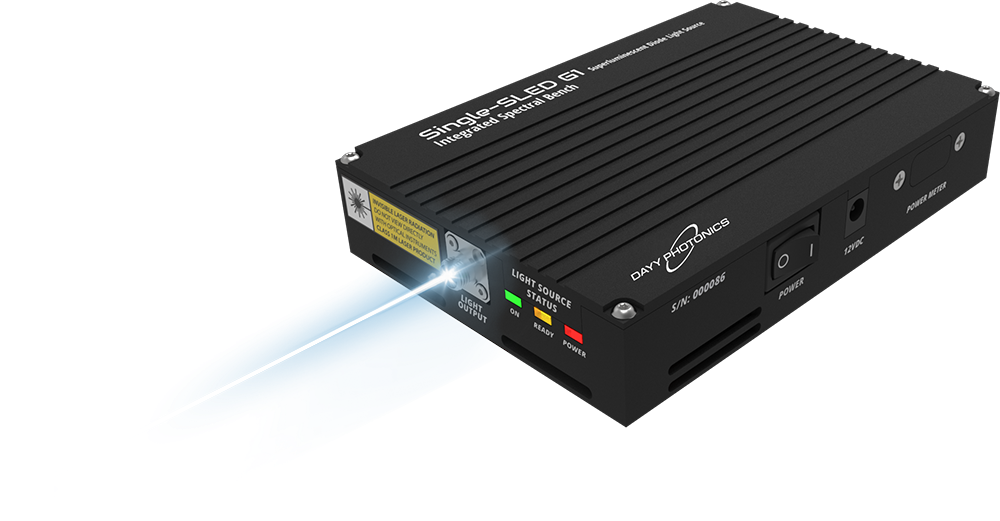

The Single-Channel Superluminescent Diode Light Source (Single-SLED) Integrated Spectral Bench (ISB1) is a compact broadband light source powered by DAYY’s Optical Spectral Engine (OSE1). Designed for versatility, it combines stability, reliability, and ease of use in a turnkey platform that integrates smoothly into advanced photonics systems. Ideal for demanding environments, the ISB1 delivers consistent performance for research, industrial, and medical applications.

Key Features
Applications
Laser Options
Certification & Safety
Downloads

User-controlled box with one SLED enclosed
Compact and user-friendly
Centre wavelength (CW) options: 770nm, 830nm, 850nm, 880nm, 930nm, 970nm, 1050nm, 1300nm, 1340nm, 1390nm, 1430nm, 1480nm, 1550nm, 1615nm, 1680nm
SLED can be run from 0% to 100% of the maximum rating
Bandwidth FWHM: 15nm-70nm
Some models include a broadband dual-stage isolator
Some models include a monitor photodiode

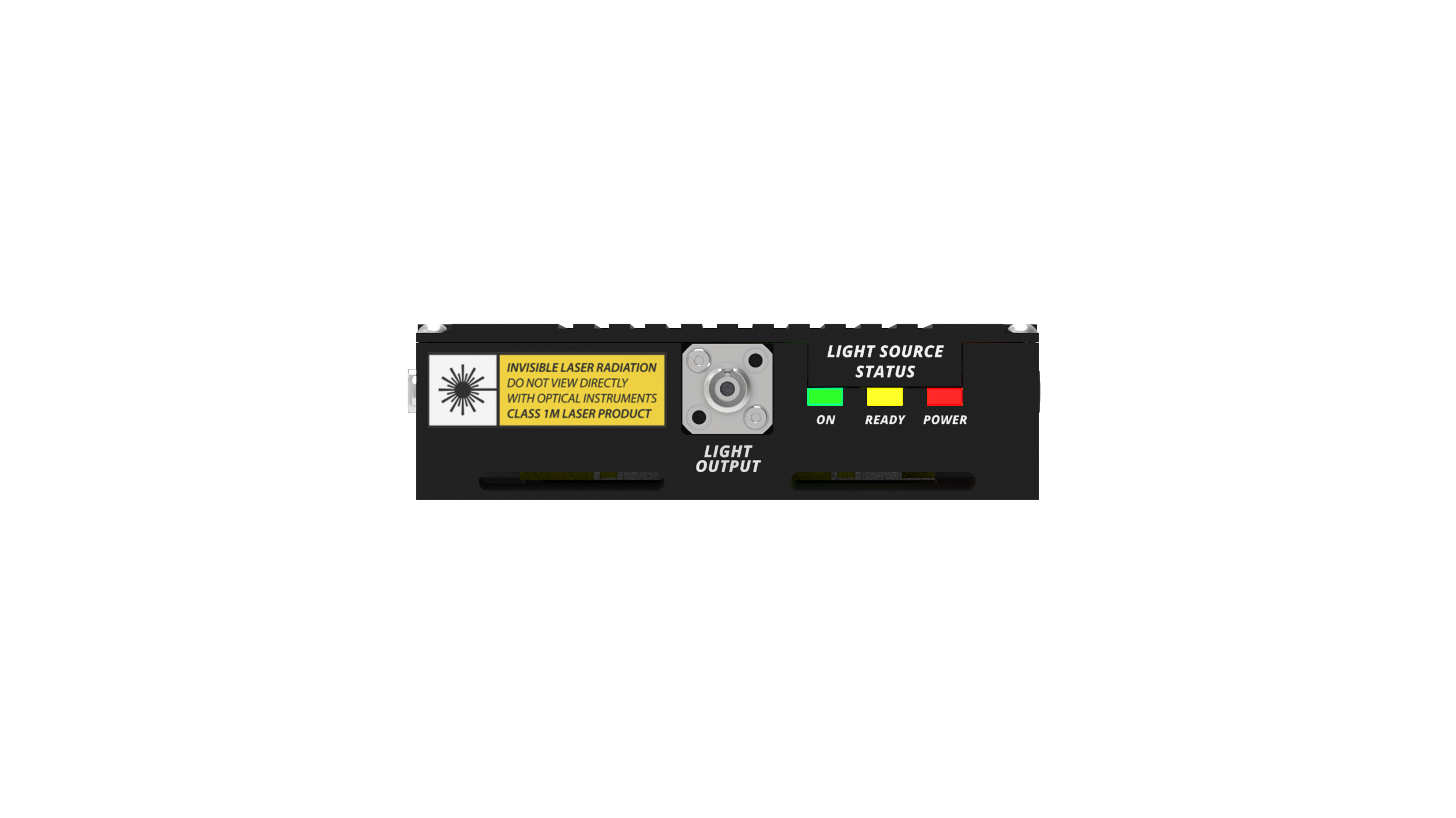

Light output connector: FC/APC (optional: FC/PC or SMA)

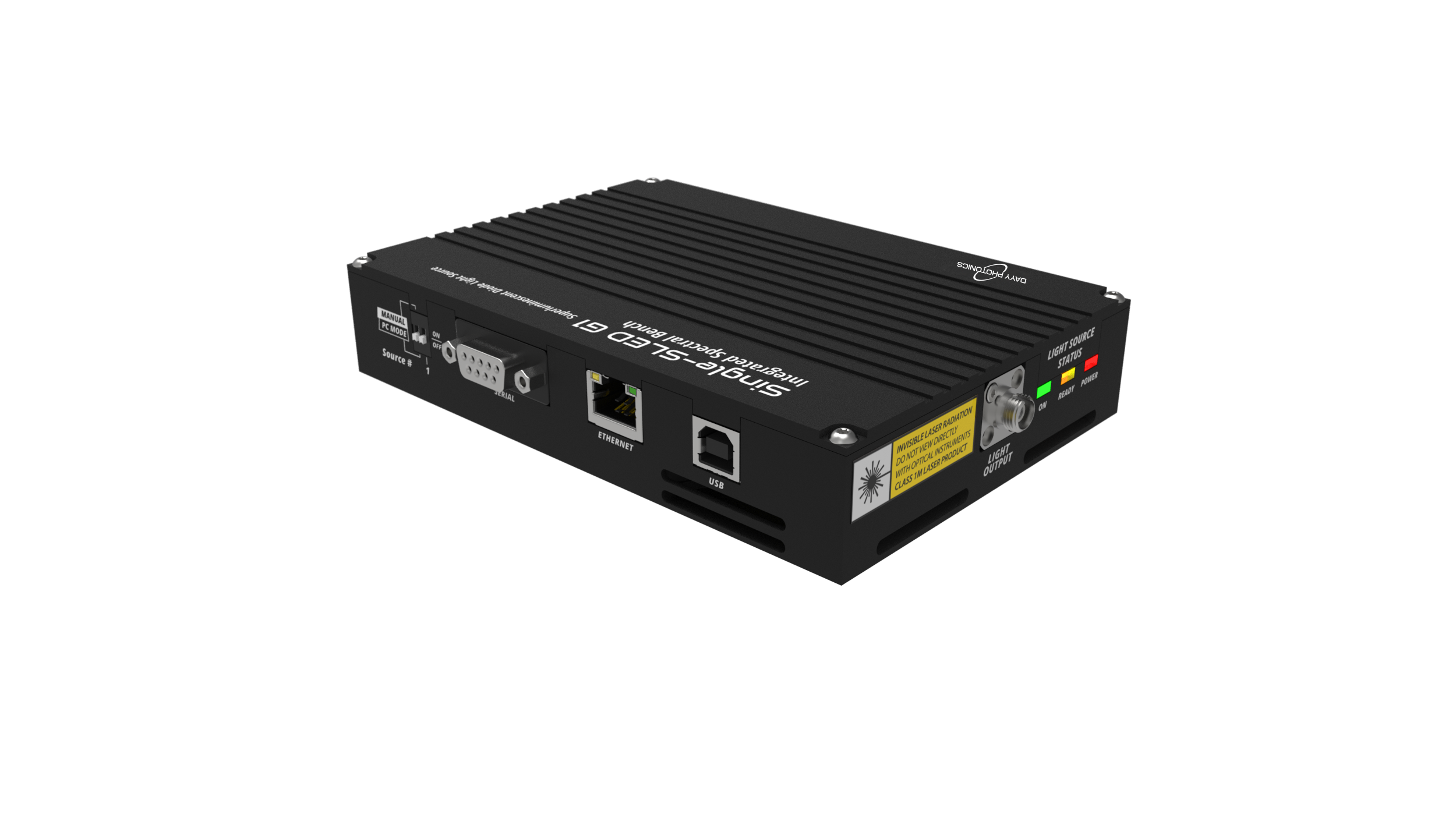

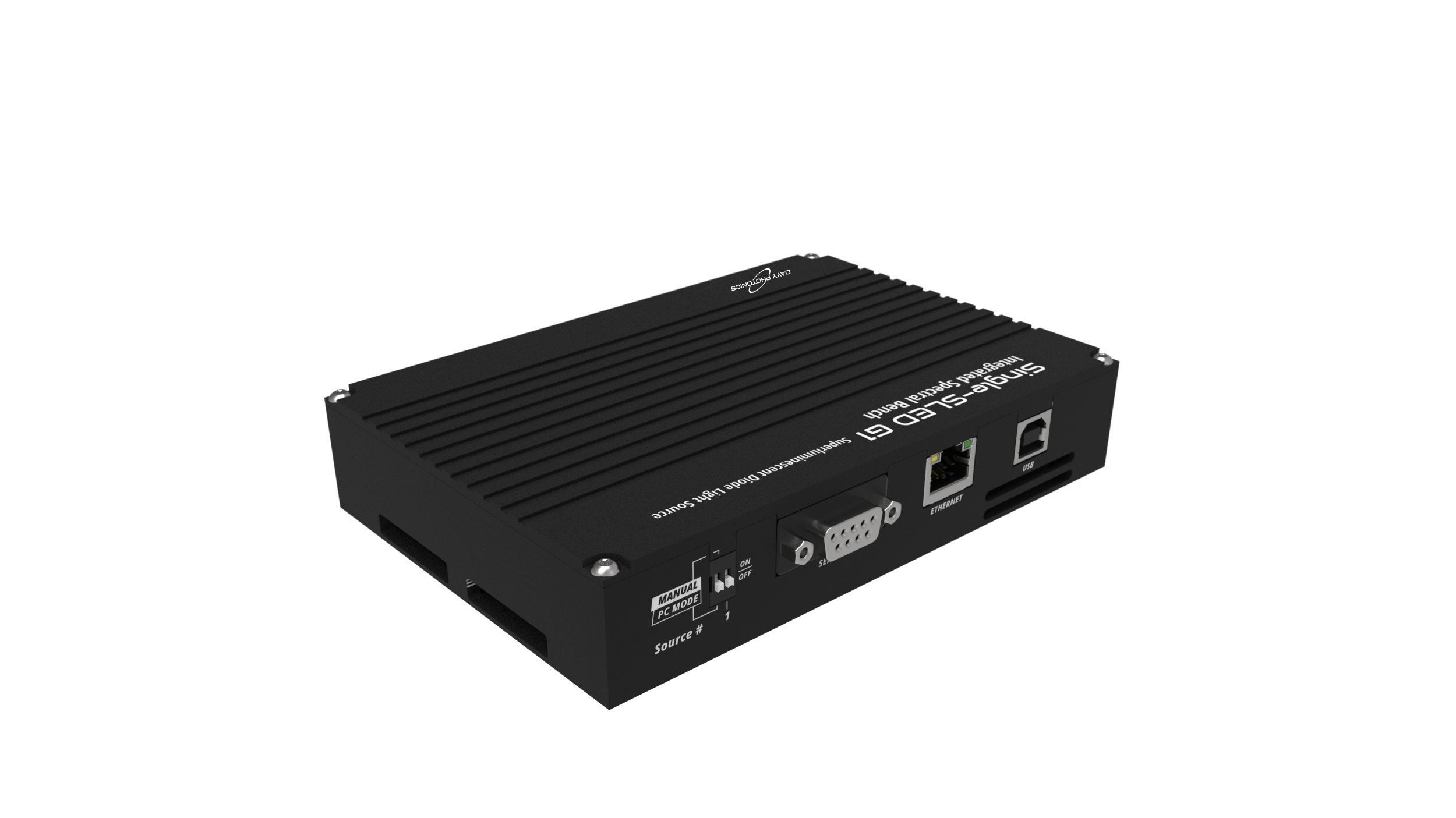

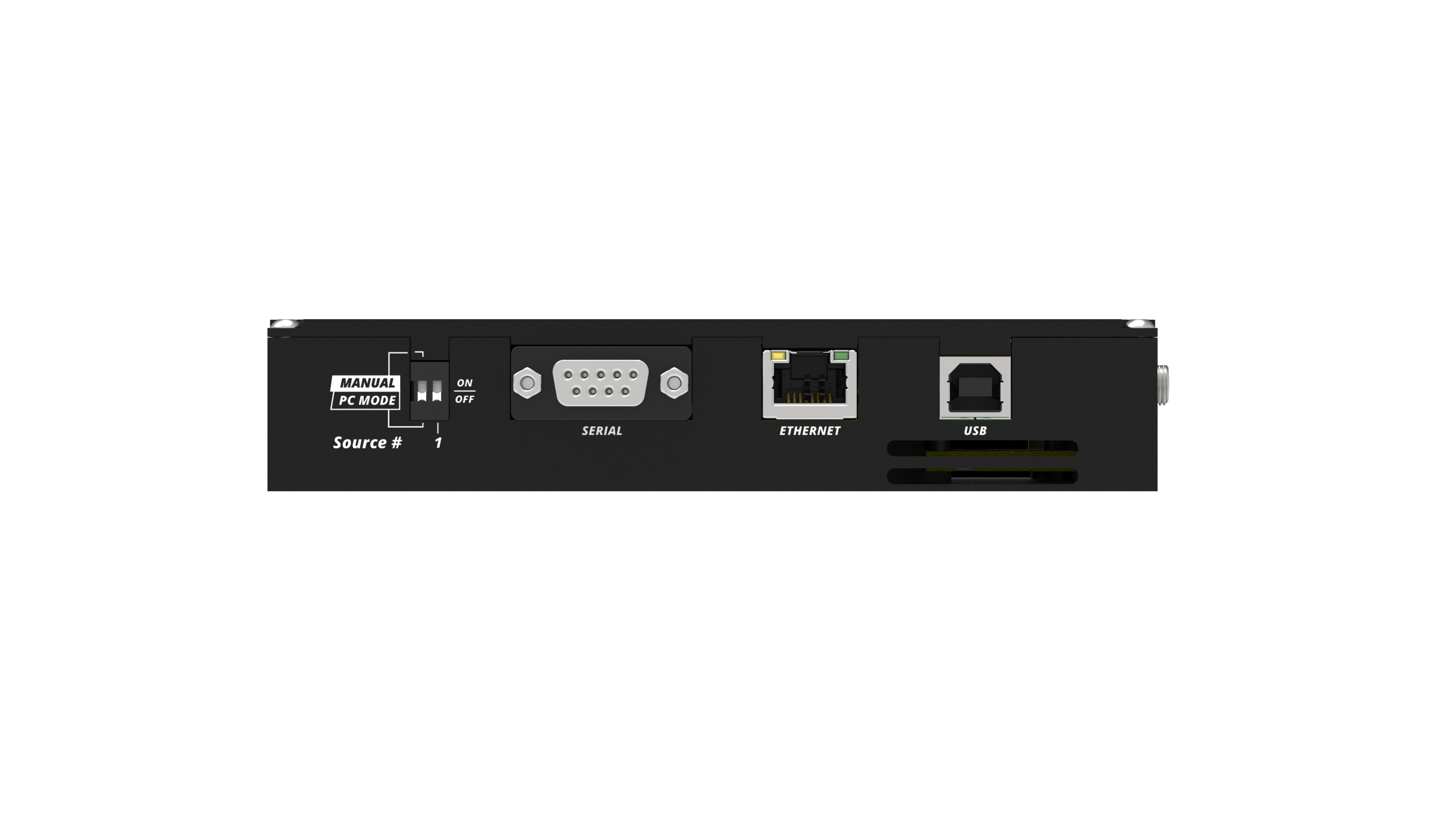

Multiple communication interfaces: USB and RS-232
TTL interface for external monitoring
Low Degree of Polarization (DOP) outputs available
User-friendly GUI and custom API available for test automation

Optical Component Testing
Telecom Test Equipment
Medical Optical Coherence Tomography
Industrial Optical Coherence Tomography
Metrology
Fiber Optic Gyroscopes
Industrial and Biomedical Imaging Systems
Optical Sensing
Test and Measurement
Research and Development

Low-Degree of Polarization (DOP): The ISB1 can provide under 5% DOP across the spectrum. This minimizes polarization sensitivity of fiber sensors and reduces the effects of polarization-dependent loss.
