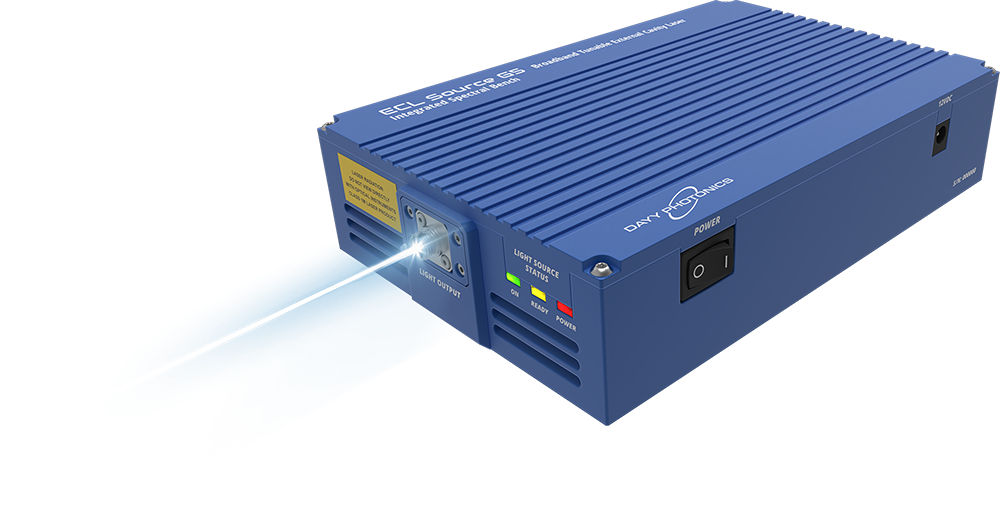

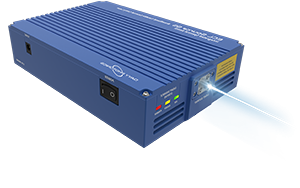

Broadband Tunable External Cavity Laser
DAYY’s Broadband Tunable External Cavity Laser (ECL) is an ultrawide tunable laser that can be tuned across a typical range of 80nm, and extended models can be tuned across a range up to 500nm. Laser tuning is done with an independent electric signal, replacing the classical method of thermal tuning or mechanical tuning, which provides only a few nanometres of tuning range or moving parts.
The Broadband Tunable External Cavity Laser is designed for scalability, utilizing one gain chip for standard models with extended models can use multiple gain chips for wider tuning range capability. The laser has the unique ability to output up to 4 simultaneous wavelengths.
Filter, search or find the right product
Fiber Type
DOP
Tuning Range
FWHM
CW
LOP
| Number | # Gain Chips | Fiber Type | DOP | Tuning Range [nm] | FWHM [nm] | CW [nm] | LOP [mW] | |
|---|---|---|---|---|---|---|---|---|
| ASM004501 | 1 | Polarization Maintaining | High Degree | 745-800 | 0.5 | 785 | 10 | |
| ASM004502 | 1 | Polarization Maintaining | High Degree | 820-865 | 0.5 | 850 | 10 | |
| ASM004503 | 1 | Polarization Maintaining | High Degree | 890-990 | 0.5 | 930 | 10 | |
| ASM004504 | 1 | Polarization Maintaining | High Degree | 910-1040 | 0.5 | 980 | 10 | |
| ASM004505 | 1 | Polarization Maintaining | High Degree | 990-1110 | 0.5 | 1050 | 10 | |
| ASM004506 | 1 | Polarization Maintaining | High Degree | 1110-1290 | 0.5 | 1210 | 10 | |
| ASM004507 | 1 | Polarization Maintaining | High Degree | 1180-1330 | 0.5 | 1250 | 10 | |
| ASM004508 | 1 | Polarization Maintaining | High Degree | 1225-1360 | 0.5 | 1300 | 10 | |
| ASM004509 | 1 | Polarization Maintaining | High Degree | 1280-1430 | 0.5 | 1350 | 10 | |
| ASM004510 | 1 | Polarization Maintaining | High Degree | 1330-1460 | 0.5 | 1410 | 10 | |
| ASM004511 | 1 | Polarization Maintaining | High Degree | 1470-1625 | 0.5 | 1550 | 10 | |
| ASM004512 | 1 | Polarization Maintaining | High Degree | 1500-1640 | 0.5 | 1590 | 10 | |
| ASM004513 | 1 | Polarization Maintaining | High Degree | 1575-1680 | 0.5 | 1625 | 10 | |
| ASM004514 | 1 | Polarization Maintaining | High Degree | 1575-1775 | 0.5 | 1680 | 10 | |
| ASM004601 | 1 | Single Mode | High Degree | 745-800 | 0.5 | 785 | 10 | |
| ASM004602 | 1 | Single Mode | High Degree | 820-865 | 0.5 | 850 | 10 | |
| ASM004603 | 1 | Single Mode | High Degree | 890-990 | 0.5 | 930 | 10 | |
| ASM004604 | 1 | Single Mode | High Degree | 910-1040 | 0.5 | 980 | 10 | |
| ASM004605 | 1 | Single Mode | High Degree | 990-1110 | 0.5 | 1050 | 10 | |
| ASM004606 | 1 | Single Mode | High Degree | 1110-1290 | 0.5 | 1210 | 10 | |
| ASM004607 | 1 | Single Mode | High Degree | 1180-1330 | 0.5 | 1250 | 10 | |
| ASM004608 | 1 | Single Mode | High Degree | 1225-1360 | 0.5 | 1300 | 10 | |
| ASM004609 | 1 | Single Mode | High Degree | 1280-1430 | 0.5 | 1350 | 10 | |
| ASM004610 | 1 | Single Mode | High Degree | 1330-1460 | 0.5 | 1410 | 10 | |
| ASM004611 | 1 | Single Mode | High Degree | 1470-1625 | 0.5 | 1550 | 10 | |
| ASM004612 | 1 | Single Mode | High Degree | 1500-1640 | 0.5 | 1590 | 10 | |
| ASM004613 | 1 | Single Mode | High Degree | 1575-1680 | 0.5 | 1625 | 10 | |
| ASM004614 | 1 | Single Mode | High Degree | 1575-1775 | 0.5 | 1680 | 10 | |
| ASM004701 | 1 | Single Mode | Low Degree | 745-800 | 0.5 | 785 | 10 | |
| ASM004702 | 1 | Single Mode | Low Degree | 820-865 | 0.5 | 850 | 10 | |
| ASM004703 | 1 | Single Mode | Low Degree | 890-990 | 0.5 | 930 | 10 | |
| ASM004704 | 1 | Single Mode | Low Degree | 910-1040 | 0.5 | 980 | 10 | |
| ASM004705 | 1 | Single Mode | Low Degree | 990-1110 | 0.5 | 1050 | 10 | |
| ASM004706 | 1 | Single Mode | Low Degree | 1110-1290 | 0.5 | 1210 | 10 | |
| ASM004707 | 1 | Single Mode | Low Degree | 1180-1330 | 0.5 | 1250 | 10 | |
| ASM004708 | 1 | Single Mode | Low Degree | 1225-1360 | 0.5 | 1300 | 10 | |
| ASM004709 | 1 | Single Mode | Low Degree | 1280-1430 | 0.5 | 1350 | 10 | |
| ASM004710 | 1 | Single Mode | Low Degree | 1330-1460 | 0.5 | 1410 | 10 | |
| ASM004711 | 1 | Single Mode | Low Degree | 1470-1625 | 0.5 | 1550 | 10 | |
| ASM004712 | 1 | Single Mode | Low Degree | 1500-1640 | 0.5 | 1590 | 10 | |
| ASM004713 | 1 | Single Mode | Low Degree | 1575-1680 | 0.5 | 1625 | 10 | |
| ASM004714 | 1 | Single Mode | Low Degree | 1575-1775 | 0.5 | 1680 | 10 | |
| ASM004801 | 1 | Free Space | High Degree | 745-800 | 0.5 | 785 | 10 | |
| ASM004802 | 1 | Free Space | High Degree | 820-865 | 0.5 | 850 | 10 | |
| ASM004803 | 1 | Free Space | High Degree | 890-990 | 0.5 | 930 | 10 | |
| ASM004804 | 1 | Free Space | High Degree | 910-1040 | 0.5 | 980 | 10 | |
| ASM004805 | 1 | Free Space | High Degree | 990-1110 | 0.5 | 1050 | 10 | |
| ASM004806 | 1 | Free Space | High Degree | 1110-1290 | 0.5 | 1210 | 10 | |
| ASM004807 | 1 | Free Space | High Degree | 1180-1330 | 0.5 | 1250 | 10 | |
| ASM004808 | 1 | Free Space | High Degree | 1225-1360 | 0.5 | 1300 | 10 | |
| ASM004809 | 1 | Free Space | High Degree | 1280-1430 | 0.5 | 1350 | 10 | |
| ASM004810 | 1 | Free Space | High Degree | 1330-1460 | 0.5 | 1410 | 10 | |
| ASM004811 | 1 | Free Space | High Degree | 1470-1625 | 0.5 | 1550 | 10 | |
| ASM004812 | 1 | Free Space | High Degree | 1500-1640 | 0.5 | 1590 | 10 | |
| ASM004813 | 1 | Free Space | High Degree | 1575-1680 | 0.5 | 1625 | 10 | |
| ASM004814 | 1 | Free Space | High Degree | 1575-1775 | 0.5 | 1680 | 10 |
