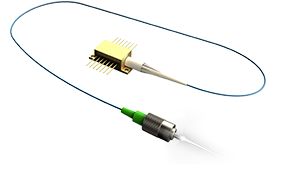

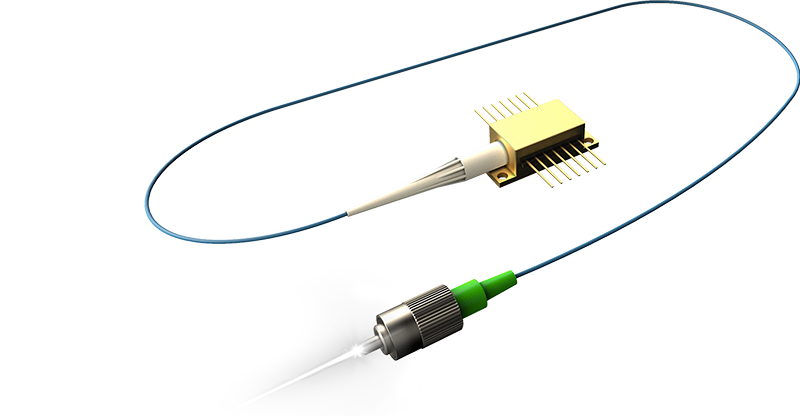

SLED Optical Spectral Engine (OSE1)
- Wide wavelength range
- Broad bandwidths
- High power, low coherence
- Industry-standard packaging
About the product
DAYY Photonics’ Superluminescent Light-Emitting Diodes (SLEDs) combine the brightness and power of a laser diode with the low coherence of an LED. Available across a wide range of wavelengths and bandwidths, these light sources are built in industry-standard butterfly packages that meet Telcordia and RoHS compliance standards. Designed for broadband applications, testing, and optical sensing, DAYY’s SLEDs provide reliable performance with superior power and spectral coverage.
- Broad product range
- Center Wavelengths ranging from 770nm to 1700nm
- Bandwidths (FWHM) ranging from 10nm to 100nm
- Light output: FC/APC Connector (Optional FC/PC or SMA)
- Single-mode (SM) or polarization-maintaining (PM) fiber
- Low degree of polarization options with DAYY’s Photonics driver module ISB1
- Superior Power and spectral coverage
- Telcordia GR-468 certification and RoHS compliance
- Low coherence length
- Low spectral ripple
- Relative intensity noise (RIN) -140dB/Hz – 125dB/Hz
- Direct modulation up to 600 MHz for specific models
- Optical Component Testing
- Telecom Test Equipment
- Medical Optical Coherence Tomography
- Industrial Optical Coherence Tomography
- Industrial and Biomedical Imaging Systems
- Optical Sensing
- Test and Measurement
- Research and Development
