SOA Optical Spectral Engine (OSE7)
- Broad spectral coverage
- High optical gain
- High saturation output power
- Reliable packaging
About the product

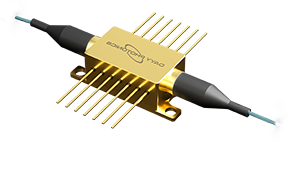

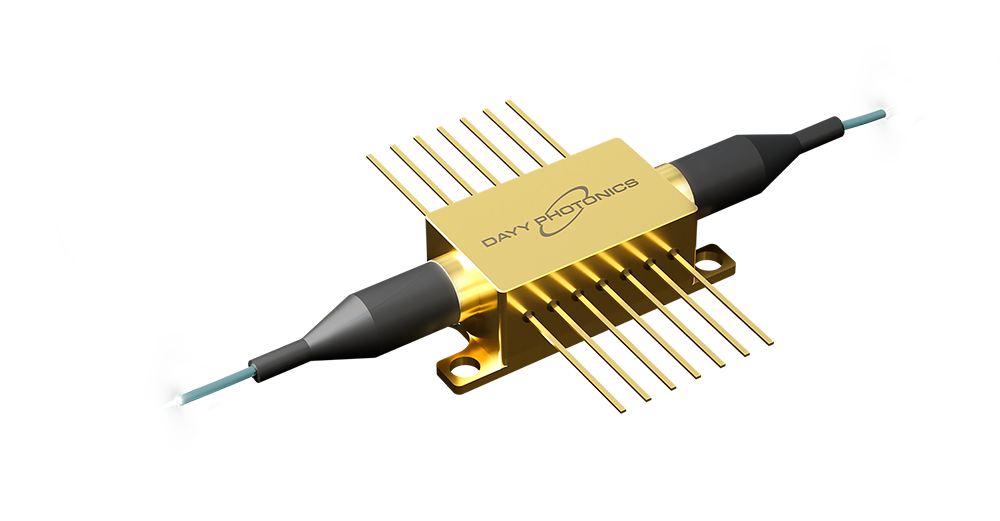

The Semiconductor Optical Amplifier (OSE7) is a high-performance, polarization-insensitive travelling-wave device engineered for efficient amplification of both monochromatic and broadband signals. With broad wavelength coverage, high gain, and low noise, it delivers reliable performance across a wide range of optical systems. Packaged in a robust, industry-standard butterfly module with integrated TEC, the OSE7 is well-suited for telecom, sensing, imaging, and research applications.
- Broad product range with center wavelengths (CW) ranging from 770 nm to 1680 nm
- Bandwidths (FWHM) ranging from 20nm to 120nm
- Small signal gains from: 18dB to 25dB
- Saturation output power 13dBm to 23dBm
- High gain, low power consumption
- Light output: FC/APC Connector (Optional FC/PC or SMA)
- Internal Thermoelectric Cooler
- Single-mode (SM) or polarization-maintaining (PM) fiber
- Industry-standard, 14-pin butterfly package.
- Optical Component Testing
- Telecom Test Equipment
- Loss compensation for fiber-optic connection and switch
- WDM fiber-optic networks
- Industrial and Biomedical Imaging Systems
- Optical Sensing
- Test and Measurement
- Research and Development
